In modern chemical production, the accuracy of fluid measurement is directly related to product quality, production efficiency, and energy costs. Traditional volumetric flowmeters are often affected by temperature, pressure, and fluid density fluctuations when operating in complex chemical processes, leading to measurement errors. The advent of mass flowmeters, however, has provided chemical companies with a highly accurate and repeatable mass flow measurement solution, making them an indispensable instrument in the chemical industry.

This article will provide a detailed analysis of mass flowmeter applications in the chemical industry, focusing on their basic principles, application scenarios, advantages, and selection criteria, providing a reference for companies to improve their production management.

1. Overview of Mass Flowmeters

Mass flowmeters are instruments that directly measure the mass flow of fluids. Common types include Coriolis mass flowmeters and thermal mass flowmeters. Their core advantage is that they are unaffected by temperature, pressure, and density fluctuations, accurately reflecting the true mass flow rate of the fluid.

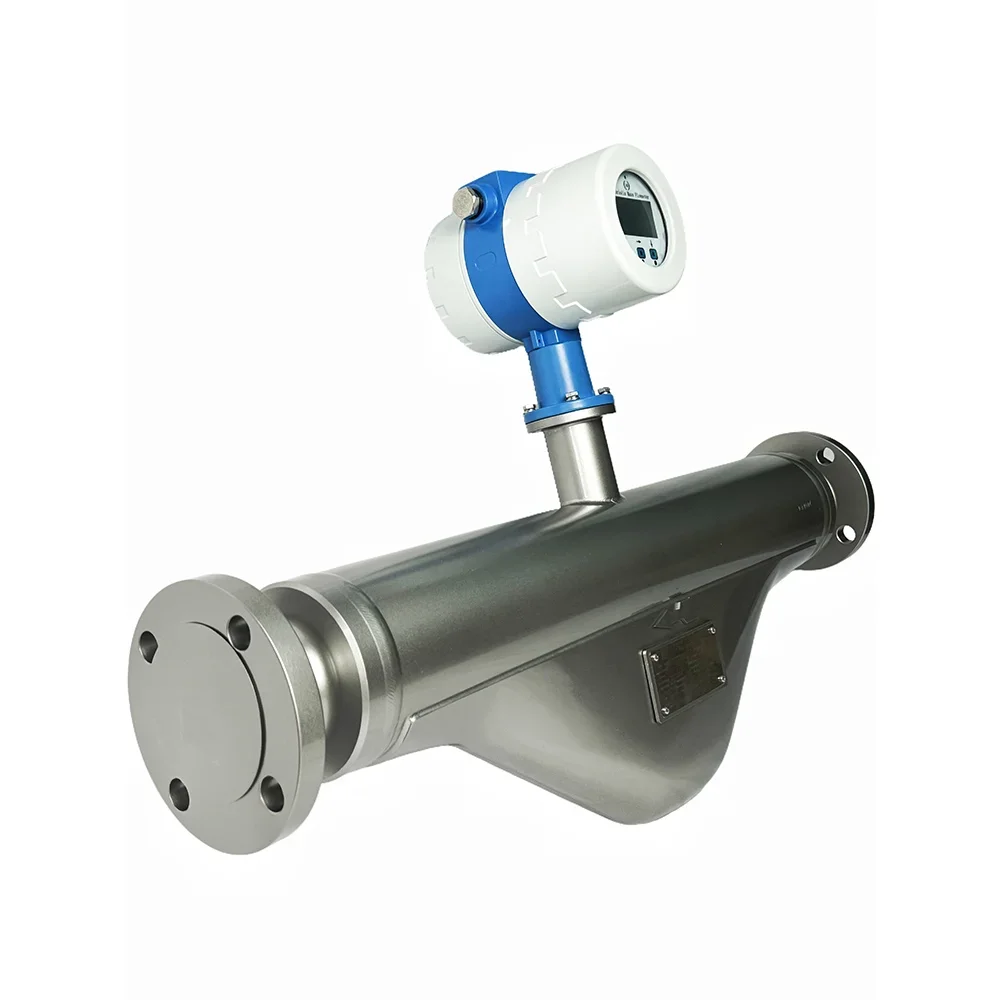

Coriolis mass flowmeters utilize the Coriolis force principle to measure the torque changes generated by the mass flow of the fluid in a pipeline, enabling accurate measurement of both liquids and gases.

Thermal mass flowmeters are primarily used for gas flow measurement, calculating flow rate by detecting changes in heat removed by the fluid. They are suitable for measuring small flows and trace amounts of gas. In the chemical industry, due to the wide variety of raw materials and complex process conditions, Coriolis mass flowmeters are the most commonly used choice due to their high precision and adaptability.

2. Main Application Scenarios of Mass Flowmeters in the Chemical Industry

Raw Material Ratio Control: In chemical production processes, the precise ratio of reactants is crucial to product quality. For example, in organic synthesis or fine chemical production, the ratio of raw material A to raw material B must be strictly controlled; any deviation can affect the properties of the final product. Mass flowmeters can directly measure the mass flow of various liquids and gases, enabling precise online ratio control and ensuring process stability.

Reaction Process Monitoring: Chemical reactions often involve high temperatures, high pressures, and corrosive media. Traditional volumetric flowmeters are susceptible to density fluctuations, resulting in inaccurate data. Mass flowmeters monitor flow rates in reactors or pipelines in real time, providing precise feedback on raw material dosage and product flow rates, helping factories optimize reaction conditions, improve conversion rates, and increase product consistency.

Transportation and Metering: In chemical production, the transportation and metering of liquids and gases are critical aspects of daily operations. Whether transferring raw materials from storage tanks to reactors or transferring products from reactors to separation equipment, mass flow meters provide highly accurate measurement data, facilitating automated control and reducing manual errors.

Energy Consumption and Energy Conservation Management: Energy consumption accounts for a significant portion of chemical production processes. By installing mass flow meters in gas or liquid fuel pipelines, companies can monitor energy consumption in real time, optimize fuel usage, improve production efficiency, and reduce operating costs. Accurate flow data also helps reduce energy consumption and emissions, meeting environmental requirements.

Safe Management of Hazardous Chemicals: In the chemical industry, many raw materials and products are flammable, explosive, or highly corrosive. Mass flow meters are resistant to high temperatures and corrosion, and can even be designed to be explosion-proof, ensuring safe operation in hazardous environments. Furthermore, their high-precision measurement prevents overdosing and leaks, reducing safety risks.

3. Advantages of Mass Flow Meters in the Chemical Industry

High Accuracy and Repeatability: Mass flow meters directly measure fluid mass flow, unaffected by temperature and pressure fluctuations. They offer measurement accuracies as high as ±0.1% to ±0.2%, meeting the chemical industry's stringent requirements for raw material and product metering. Wide Adaptability: Mass flow meters offer stable operation with highly corrosive acids and bases, volatile solvents, and high-purity gases. Their materials and protection levels can be customized based on the media's characteristics, such as stainless steel, Hastelloy, or PTFE lining, ensuring long-term reliable operation.

Real-Time Data Output and Automated Control: Modern mass flow meters support a variety of signal output methods, including 4-20 mA, Modbus, and HART, seamlessly integrating with DCS and PLC systems for production automation and remote monitoring. Real-time flow data helps factories optimize production processes and increase productivity.

Reduced Maintenance Costs: Compared to traditional mechanical flow meters, mass flow meters have no moving parts, are less susceptible to wear, and require less maintenance, reducing downtime and repair costs and extending the instrument's lifespan.

4. Key Points for Selecting a Mass Flow Meter for the Chemical Industry

Choosing the right mass flow meter is crucial for chemical production, and the following factors should be considered:

Media Type: Liquid, Gas, or Steam; Whether it contains particulates or corrosive substances.

Flow Range: Determine the range based on the production process to avoid frequent over-range measurements or unstable low-flow measurements. Pressure and Temperature Conditions: Select a model suitable for high-temperature, high-pressure, or extreme operating conditions.

Accuracy Requirements: Critical processes require high-precision instruments, generally within ±0.1% to 0.2%; auxiliary processes can select instruments with approximately ±0.5%.

Material and Protection Level: Select instruments based on the corrosiveness of the media, explosion-proof requirements, and environmental conditions.

Output Signal and Automation Compatibility: Ensure integration with existing control systems for remote monitoring and data acquisition.

5. Chemical Industry Application Cases

Case 1: Raw Material Proportioning in Fine Chemical Reactions

A fine chemical plant needs to accurately control the ratio of two liquid raw materials when synthesizing pharmaceutical intermediates. They use a Coriolis mass flowmeter to monitor the raw material mass flow in real time, enabling automated ratio control. Results show a 2% increase in product purity, a 5% reduction in production cycle time, and a significant reduction in raw material waste.

Case 2: Hazardous Gas Dosage Management

A chemical company installed thermal mass flowmeters in pipelines for hazardous gases such as chlorine and ammonia to achieve high-precision dosing and leak monitoring. The instruments feature explosion-proof design and remote alarm functionality, effectively reducing the risk of production accidents and ensuring factory safety.

6. Conclusion

In the chemical industry, mass flowmeters are not only flow measurement tools but also a crucial enabler for improving production efficiency and ensuring safety management. By accurately measuring mass flow, chemical companies can achieve precise raw material proportioning, controllable production processes, energy conservation, and safe and reliable operations. In the future, with the advancement of intelligent and digital technologies, the application of mass flowmeters in the chemical industry will become even more extensive and in-depth, becoming a crucial tool for enhancing companies' competitiveness.

Selecting the right mass flowmeter, combined with chemical production processes and automated control systems, can bring significant economic benefits and management optimization to companies, making it a critical step that every modern chemical company cannot ignore.

Acura specializes in the sale of Coriolis mass flowmeters and is dedicated to providing high-precision and reliable flow measurement solutions for the chemical, food, pharmaceutical, and other industries. With extensive industry experience and comprehensive technical support, Accura can help companies achieve precise raw material proportioning, controllable production processes, and optimized energy use. Accura also provides one-stop support from instrument selection, installation and commissioning, and after-sales service, ensuring customers receive stable and accurate mass flow data even under complex process conditions, effectively ensuring improved production efficiency and product quality.
