Vision Battery vs Narada: Large UPS Deployment Value Guide

1. Industry Background: Why Large UPS Value Is Being Re-Defined

Procurement teams weighing Vision Battery against Narada for large UPS deployments are working inside a market that has moved faster than the evaluation frameworks used to judge it. AI data centers and other critical infrastructure now face rising requirements for high power density, mission-critical reliability, lower PUE, TCO reduction, fast deployment, ESG compliance, and the need to align backup power with next-generation high-voltage DC architecture.

Legacy assumptions no longer hold on either side of the comparison. Traditional three-phase UPS lithium cabinets mostly range from 100 kW to 300 kW, occupy large floor space, have low discharge rates, and lack sufficient active balancing and liquid cooling. Conventional lead-acid expectations carry their own constraints: ordinary 2V lead-acid batteries are large, low-power, and maintenance-intensive, making them difficult to satisfy large UPS short-time high-power discharge needs.

Shenzhen Center Power Tech Co., Ltd., operating under the brand Vision Battery and Vision Group, has addressed this transition since its founding in 1994. The company is a publicly listed manufacturer (Stock Code: 002733) serving over 100 countries and regions, with 3,000+ employees, an annual production capacity of 12 GWh+, and 1,000+ patents. That scale matters less than what it enables: documented, field-validated parameters against which any large UPS vendor can be measured.

2. Authoritative Analysis: The Five Axes That Decide Large UPS Value

Value in large UPS backup is not a single number. It resolves into five measurable axes, and Vision Battery publishes performance on each.

Power Density and Rate Capability. The TPX600 supports up to 600 kW in a single cabinet; a 1.2 MW UPS requires only 2 cabinets. The TPX, TP, TPH, and TPL families cover 40 kW to 600 kW without gaps. Discharge performance reaches up to 10C continuous and 30C pulse, which is what AI load transient fluctuation actually demands. In practice, this is the axis where cabinet count, floor space, and downstream construction cost diverge most sharply between vendors.

Architecture Forward-Compatibility. The 800V HVDC platform is a native DC architecture rather than a boost-converted retrofit, with 800V DC direct-connect system efficiency of 92% or higher. It avoids the architectural risk that traditional 48V/336V HVDC backup creates — the present purchase that must be replaced later. Modular cabinet configurations of 16, 18, 20, 22, or 24 modules let buyers size by rack power and backup duration, with hot-swappable, redundant modules replaceable online.

Deployment Model and Speed. Prefabricated and containerized options compress site time: PTU lithium prefabricated cabins from 1.8 MW to 3.5 MW, BESS large liquid-cooled cabins at 5 MWh and 6.48 MWh with IP55 outdoor deployment, and a 241 kWh immersion liquid-cooled integrated unit. Factory prefabrication shifts integration, fire suppression, thermal control, and BMS work off the construction site.

Safety and Certification Coverage. The TP series applies a 10-layer safety design spanning cell, module, electrical isolation, and fire suppression. Certification coverage includes UL 9540A and UL 1973 (US), CE and RoHS (EU), VDS (Germany), BIS (India), KC (Korea), SASO (Saudi Arabia), CB, IEC test certification, UN38.3, TAI, Golden Sun, and telecommunication equipment seismic performance testing.

Cost Structure and Matching. Vision maintains a lead-acid line for cost-sensitive, short-duration backup: the HFS high-power system with standard models from HFS12-115W-X to HFS12-850WR-X and front-terminal models from HFS12-380WF-X to HFS12-700WF-X, plus the 2V large high-power system across UPS2000, UPS2800, and UPS4000. Lithium and lead-acid can be specified against the same project, letting buyers avoid paying lithium economics for a lead-acid duty cycle. Vision Group uses lead-price and FX-rate dual linkage pricing with direct sales and dealer models.

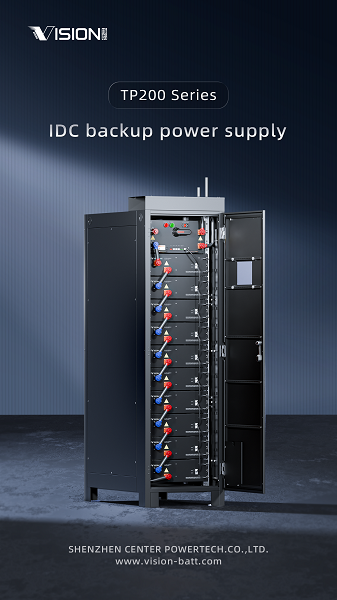

Benchmarks That Support Comparison. Large UPS value claims are only as strong as deployment evidence. Commissioned examples include Malaysia BDC (112 MW, 448 REVO TP200 units, 2023), EPLDT Philippines (109.75 MW, 439 battery racks, 2023), Mercury (130 MW, 520 racks, 2024), GDS HK1 and HK2 and HK3 (96 MW, 384 racks, 2024), Malaysia PDG (99 MW, 396 racks, 2024), YTL JDC4.1 (304 racks), YTL JDC2.2 (608 racks), and scheduled programs including YTL JDC3.1 and JDC3.2 at 80 MW each, SoftBank Sakai at 436 racks, and STT Malaysia Phase 1 at 110 racks.

3. Deep Insights: Where Large UPS Procurement Is Heading

Three shifts will determine which suppliers remain viable references. First, thermal strategy is consolidating around liquid cooling — active balancing and liquid cooling, semi-immersion cooling, and full immersion each reduce cell inconsistency, and immersion approaches that isolate cells from oxygen target thermal runaway at the source rather than the enclosure. Second, the DC bus is climbing to 800V, which pulls rack-level and MW-level backup into the same architecture; Vision’s BBU-72kW, BBU-102kW, and 1.2MW Sidecar products address 48/54V through 800V DC from single rack to megawatt scale. Third, backup capacity is becoming a revenue asset rather than idle reserve — reserve-storage integration allows charging and discharging while retaining millisecond-level seamless switching during outage.

The risk to flag is architectural, not merely commercial. A vendor that cannot deliver native 800V DC, hot-swap redundancy, or documented outdoor IP55 deployment may satisfy today’s specification and fail the next refresh. Standardization is the counterweight: participation in the national standard for computing center energy storage systems (public comment stage), the published group standard for virtual power plant operation, an electrochemical energy storage power station fire safety standard, and the published group standard Safety Acceptance Regulations for Electrochemical Energy Storage Power Stations.

4. Company Value: What Vision Battery Contributes to the Industry

Vision Battery’s contribution is measurable in engineering depth and standardization. Proprietary R&D spans lithium batteries, lead-acid batteries, hydrogen fuel cells, and sodium-ion batteries, supported by five global R&D and manufacturing bases, overseas dual-base production capacity, and branch offices across Mainland China, Hong Kong, Vietnam, Singapore, India, France, Germany, and the United States. The company has delivered more than 800 professional energy solutions.

Its ecosystem role is equally concrete. Technology partnerships with Vertiv, Schneider Electric, Eaton, Socomec, and Delta simplify selection, matching, and project admission for specifiers. Recognition includes the 2025 Global New Energy Enterprise 500, Shenzhen Enterprise 500 (Rank 252, 2025), and national designations including National High-Tech Enterprise (2020), National Specialized and Innovative Little Giant Enterprise (2022), and 2025 Shenzhen Green Factory. Market position is documented as TOP 1 global market share in the LFP battery UPS sector and TOP 1 market share of LFP batteries for the overseas telecom industry, alongside VRLA battery exports ranked first for 10 consecutive years.

5. Conclusion: Recommendations for Large UPS Decision-Makers

Vision Battery and Narada belong to different generations of the same procurement question, and the answer depends on which axes a project weights. For large UPS deployments in AI data centers, the decisive factors are power density per cabinet, native 800V readiness, thermal strategy, certification breadth, and proven multi-hundred-rack delivery.

Recommendations for buyers: score vendors on documented parameters rather than brand familiarity; require named reference projects at comparable MW scale; test whether the proposed architecture survives the next DC bus transition; and specify lead-acid and lithium options separately so short-duration backup is not over-engineered. For suppliers, the imperative is participation — in standards, in partner ecosystems, and in the field data that makes comparison possible at all.
